歡迎訪問常熟市喬佳機械設備制造有限公司官網！

產品中心
Product Center
管式電池正極板自動刷片機
管式電池正極板自動刷片機

工作原理
封好底（扣底）極板人工放在不銹鋼網帶上面，自動輸送經過牛筋棍后通過上下毛刷，自動刷片毛刷相對旋轉，板子經過后無死角全部清理表面鉛粉， 揚起的粉塵由除塵管道吸走，后可以利用，除塵一系統由脈沖、布袋、風機、管道為一體放在主機正后方，收塵系統由 PLC控制，共為六個脈沖除塵，每個脈沖反應時間，脈沖故障，主機故障均在觸摸屏上反應，風機為5KW板柵經過毛刷以后，后面有一排0.7孔氣吹一下，保證了極板表面無鉛塵，再由輸送帶送出機身后由一人整理（一人放片，一人收片）工作效率高。

working principle
After sealing the bottom (bottom), the pole plate is manually placed on the stainless steel mesh belt, automatically conveyed through the beef tendon stick, and then passed through the upper and lower brushes, and the automatic brush blade and brush rotate relatively. The dust is sucked by the dust removal pipeline and can be used later. A dust removal system consists of pulses, cloth bags, fans, and pipes as the body and is placed directly behind the host computer. The dust collection system is controlled by PLC.
There are six pulse dust removal systems in total. The response time of each pulse, pulse failure, and host failure are all reflected on the touch screen. Lead-free dust, and then sent out of the body by the conveyor belt, one person arranges it. (One person puts the film, one person receives the film) High working efficiency.

技術參數 Technical Parameter

型號 Model

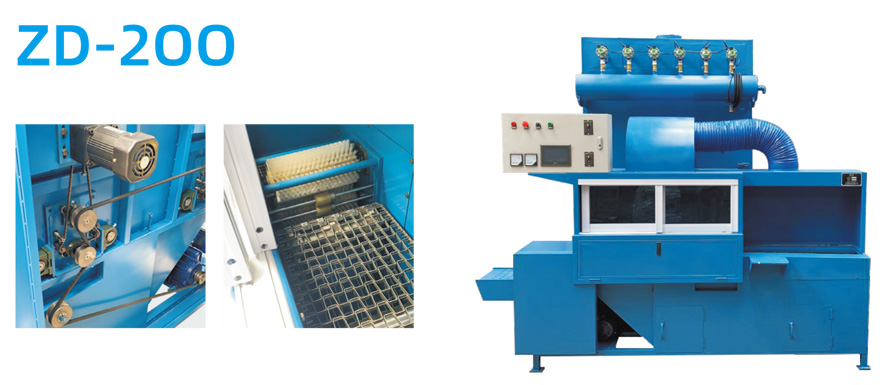

ZD-200型

總質量 Total Mass

1400kg

除塵風機型號 Dust Removal Fan Model

4-72

不銹鋼網帶型號 Stainless Steel Mesh Belt Model

316 材質 3-300 型

整機總功率 The Total Power ofThe Whole Machine

6kW

脈沖閥型號 Pulse Valve Model

1 寸 DC24V

脈沖間隔時間 Pulse Interval

0.1 S-99S可調

外形尺寸 Dimensions

長 2800mmx寬2600mmx 高 2500mm

工作效率 Work Efficiency

每分鐘網帶行走28m
